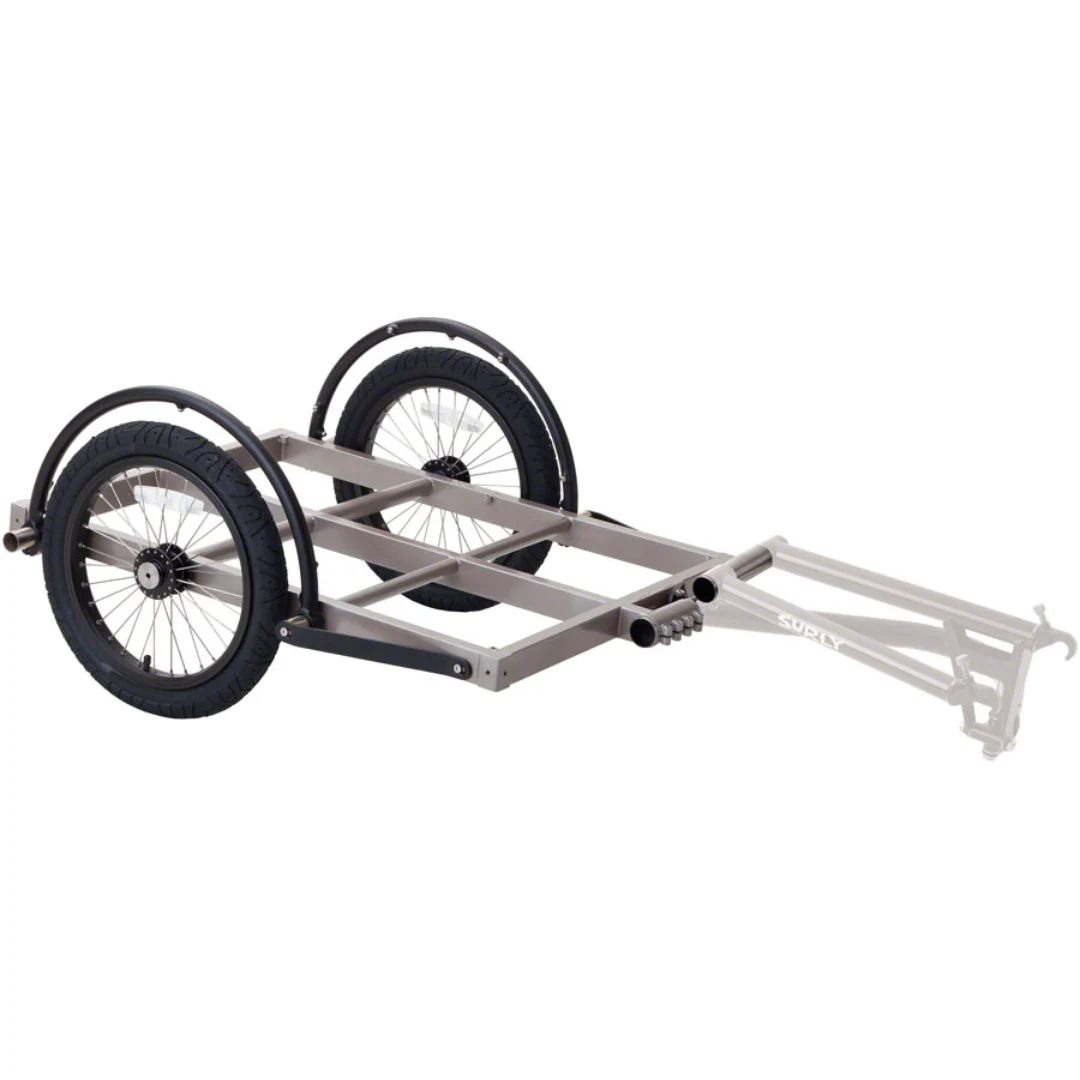

You are looking at Surly's Ted trailer! It is 32” long and 24” wide. Ted is basically the same as the Bill trailer but shorter. It’s made of TIG-welded Chromoly steel for strength and long life. Surly studied a lot of other trailers and thought about what they want out of a general purpose trailer. From its construction to all the details, Surly is proud to offer you a trailer you can use for a long, long time to carry all kinds of stuff. When you don’t need it, it easily disconnects from your bike and when you’re ready to use it again it attaches just as quick and stays attached until you remove it.

With added threaded mounting points for decking, corner stakes or for adding custom-built pieces. The wheels are strong, with stainless steel spokes and hardware, aluminum rims and durable, fast-rolling 16x1.95” tires.

Surly's hitch system is designed to be as universal as possible. This hitch will likely fit your bike. It works with full-suspension frames, disc brakes, rear racks and fenders. It adjusts to accommodate hub widths from 120 – 145mm and allows you to align the centreline of the trailer on the centreline of the bike. It will work with bikes that have wheels as small as 20” and as large as 29” while keeping the bed level with the ground. This is especially important when you are hauling long items that hang off the back of the trailer (lumber, tubing, ladders, etc.). Our hitch will attach to your bicycle one of two ways: our direct mount Hitch Nuts or our Trailer Skewer. Our Hitch Nuts are 10 x 1mm threaded inserts that thread directly into any of our frames that come with our touring dropouts à la the ECR, Ogre and Troll. If you’re using a QR rear hub, we also have a skewer mounting system available. If you’re using a hub with a 3/8” threaded, solid axle… yeah we don’t have that.

NOTE: the Bill and Ted hitch is sold separately. Remind your local shop to order hitch and the correct bed length.

Be sure to check out our selection of trailer accessories, all thoughtfully designed and quality made to help your stuff stay protected and secure.

Numerous threaded bosses for bolting down custom decks, sides or other accessories

High quality wheels built with double wall rims, custom oversized sealed bearing hubs and 16 x 1.95” Maxxis Hookworm tires

TIG welded 4130 Chromoly frame

Stainless steel hardware

Narrow enough to fit through a 30” door

Hitch attachments sold separately

300 lb weight limit

Platform Dimensions: 32 x 24"

Specs |

SKU	BT0001
Capacity	300 lbs
Weight	30 lbs
Cargo Weight	32 x 24"
Wheel Size	16"
Frame	TIG-welded Chromoly
