Description |

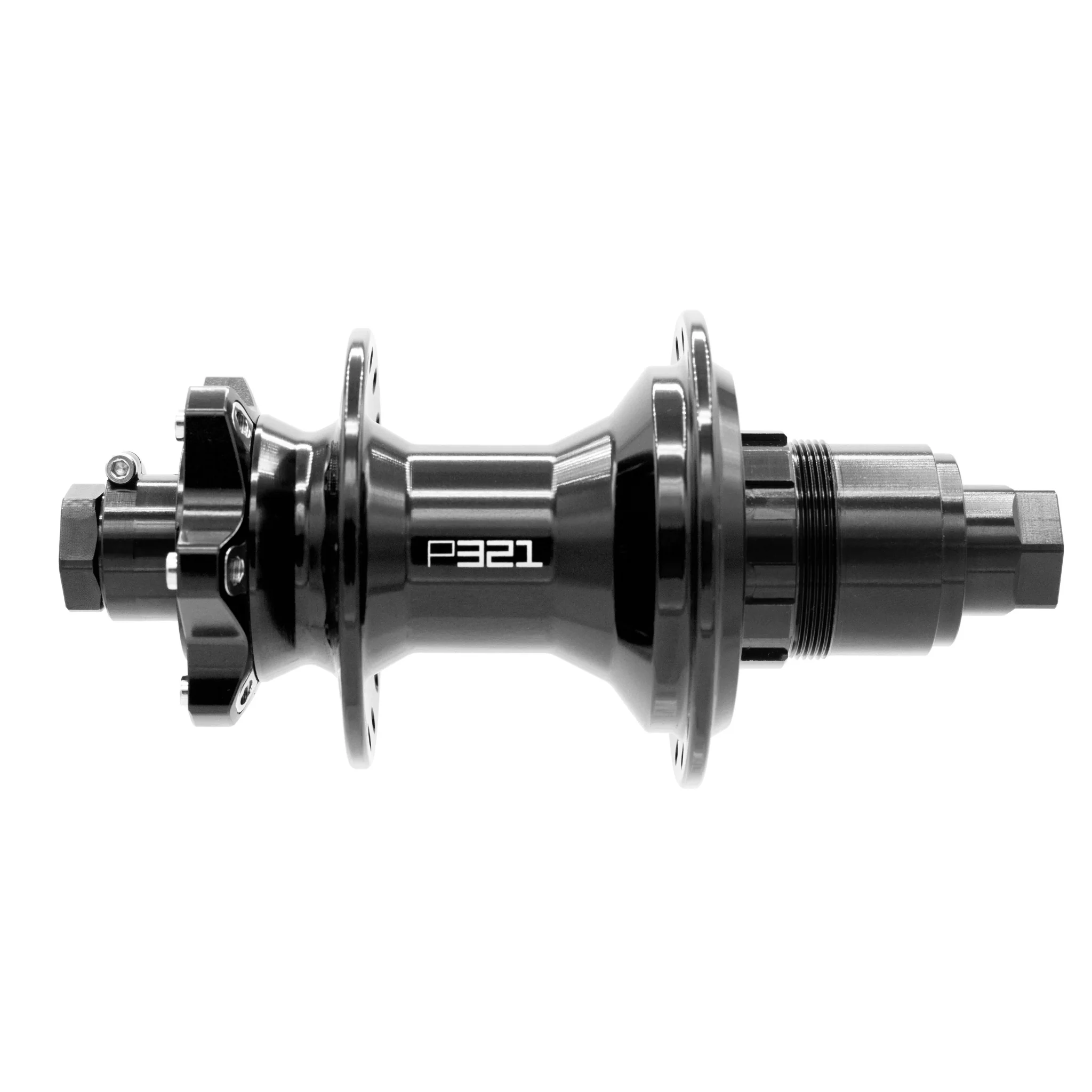

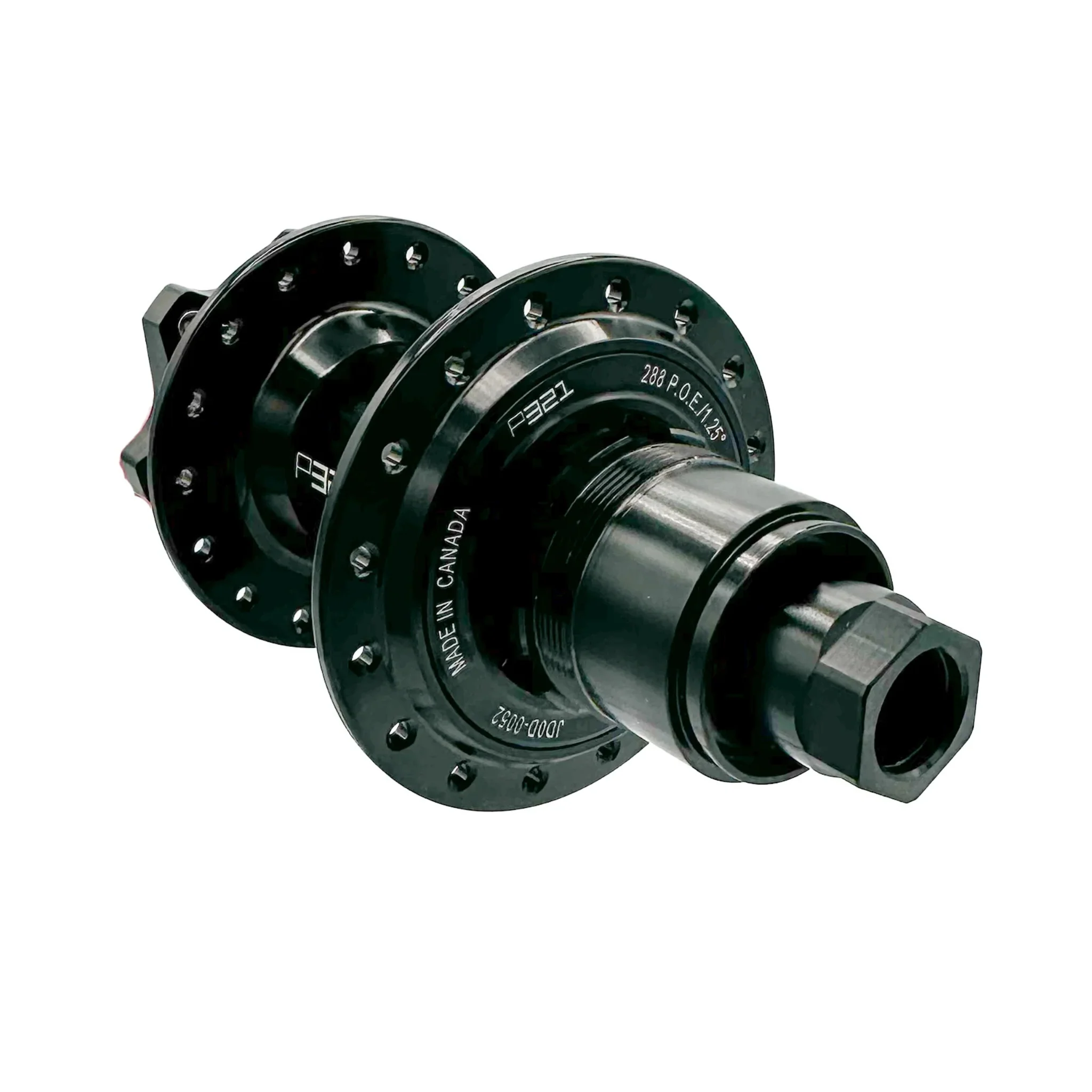

Project 321 G3 Rear Hub 12x142 is built to balance strength, weight, reliability, and efficiency, with instant, rock solid engagement. The G3 uses a 72 tooth drive ring and a three step magnetically actuated pawl system. A total of eight pawls work in teams of two to deliver 1.25 degree engagement, or 288 points of engagement.

For braking, the G3 uses Project 321 6 Lock, an enhanced six bolt rotor interface with stainless steel bolt threads. It uses T25 Torx hardware and does not require a lockring for six bolt rotor retention. It can also be converted to center lock, with the note that external spline lockrings must be used for center lock rotors.

Features |

• Magnetic pawl engagement system with 72 tooth drive ring
• Eight pawls for 1.25 degree engagement, 288 points of engagement
• 6 Lock enhanced six bolt rotor interface with stainless steel bolt threads
• Six bolt rotor retention uses T25 Torx hardware and no lockring
• Convertible to center lock with external spline lockrings required
• Hub shell made from aerospace grade 7075 T6 aluminum

Specs |

Model	G3 Rear Hub
Brand	Project 321
Axle Position	Rear
Axle Spacing	12x142 mm
Center Lock Compatibility	6 Lock six bolt
Engagement	1.25 degree
Drive Ring	72 tooth
Pawls	Eight, magnetically actuated
Hub Shell Material	Aerospace grade 7075 T6 aluminum
Finish	Fully anodized
Use	Trail, enduro, all mountain
